WISA 2102 FI top control
Move your mouse over the drawing, click on the circle next to the part you need, and then you will find all the necessary information.
Available spare parts
Short filling time: 6 litres in 46 sec at 3 bar Quiet filling: 13 dB (A), Classe 1 Telescopic tube 3/8” side entry Can be used in all cisterns with side entry KIWA, LGA, DIN and DVGW approved Supplied with accessories / fittings to your demands Without threaded rod suitable for all Sphinx / Novoboch / Warneton close coupled cisterns Without thread end suitable for all WISA XS and XT concealed systems Without thread end and shortened black thread end suitable for all other WISA concealed systems
Pneumatic flush valve including hoseFor cisterns WISA 2100 UP
Size: Ø 65 mmHole: Ø 28,5 mmThickness: 3 mm
Discharge elbow fixation bracketFor concealed flushing cisterns XS / XT, 380 / 387, 3800 / 6052
To be used in case of a thick wall Flush pipe extension L = 230 mm Discharge extension L = 230 mm Outlet pipe Ø 90 mm Outlet pipe Ø 45 mm Two nut covers Key seal Universal Color: black
To be used in case of a thick wall Flush pipe extension L = 300 mm Discharge extension L = 300 mm Outlet pipe Ø 90 mm Outlet pipe Ø 45 mmTwo nut covers Key seal Universal Color: black
Set of rubber seals for 90 mm drain pipe and drain elbowFor concealed cisterns XS / XF / XT, 380 / 387 / 399, 3800

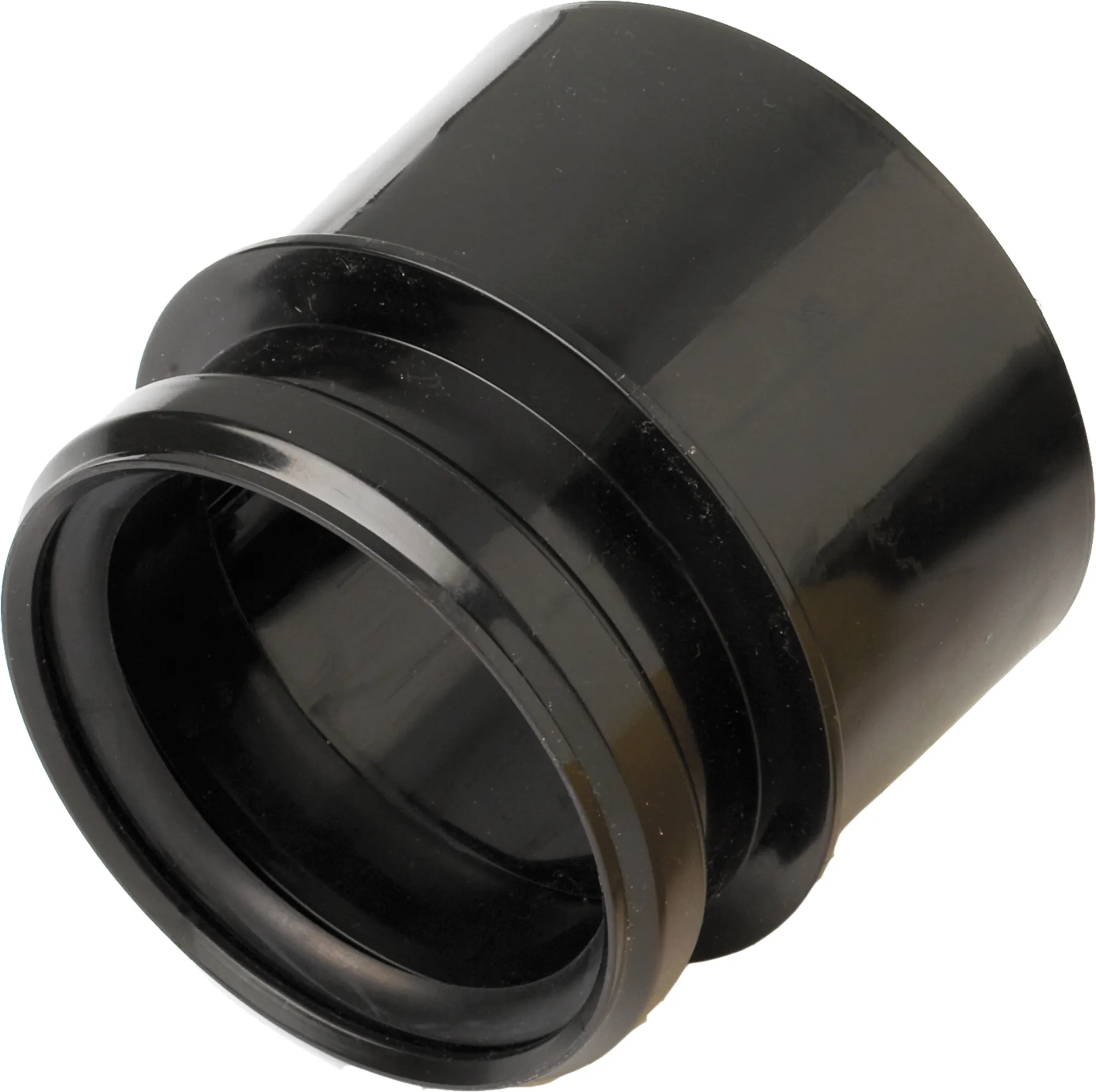

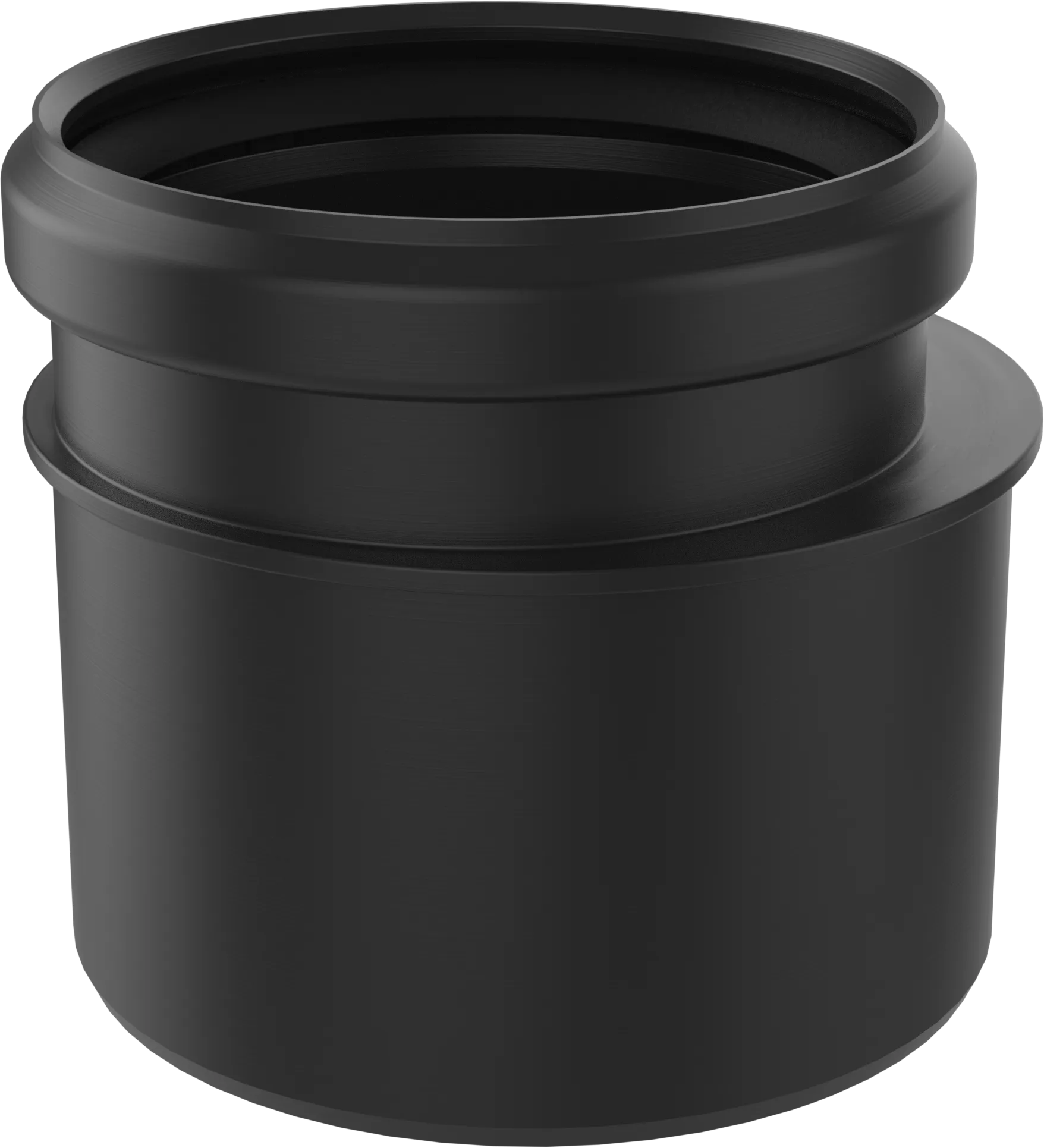

For built-in systems Suitable for horizontal connection of concealed systems Universal Material: PE-HD Eccentric Colour: black
