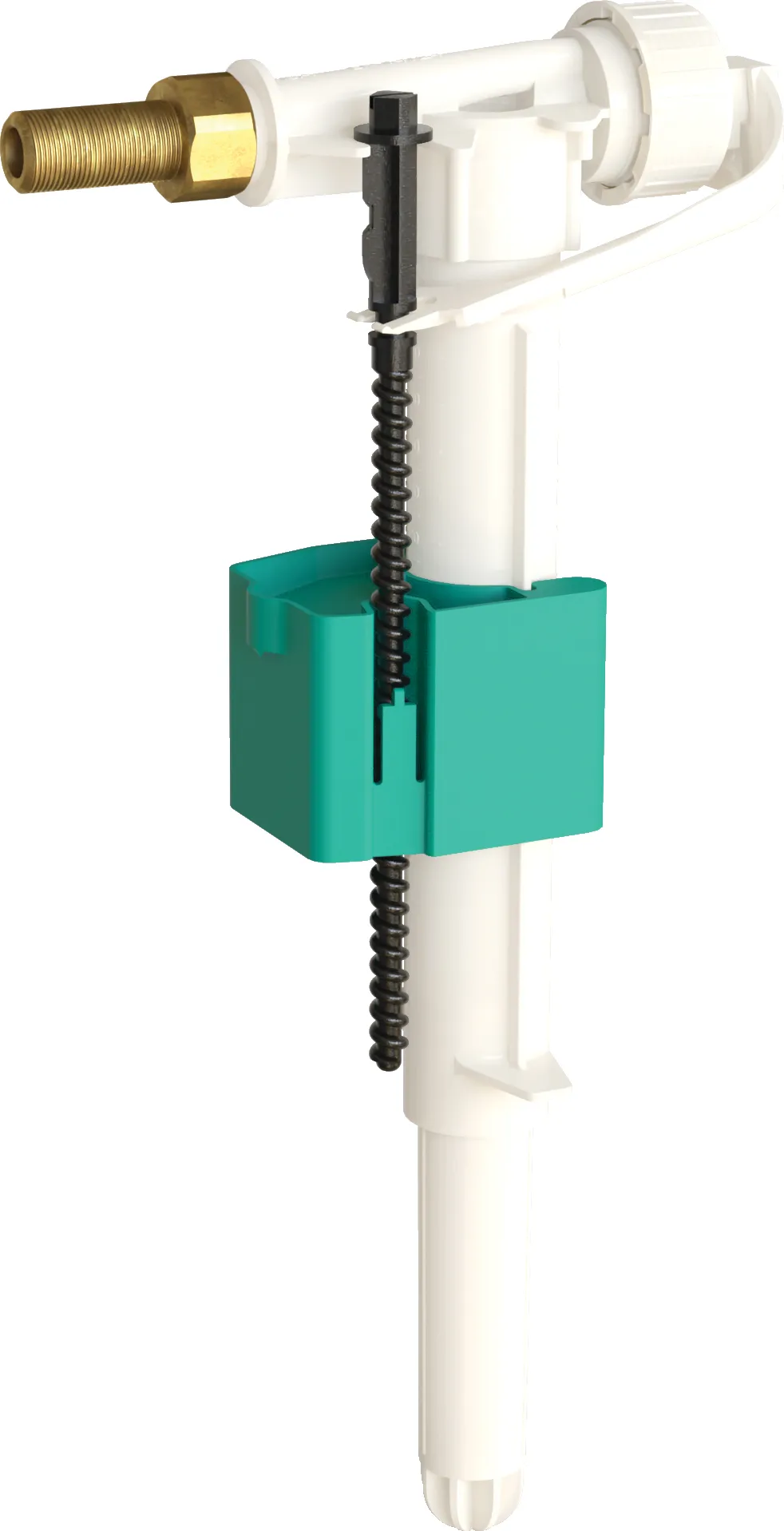

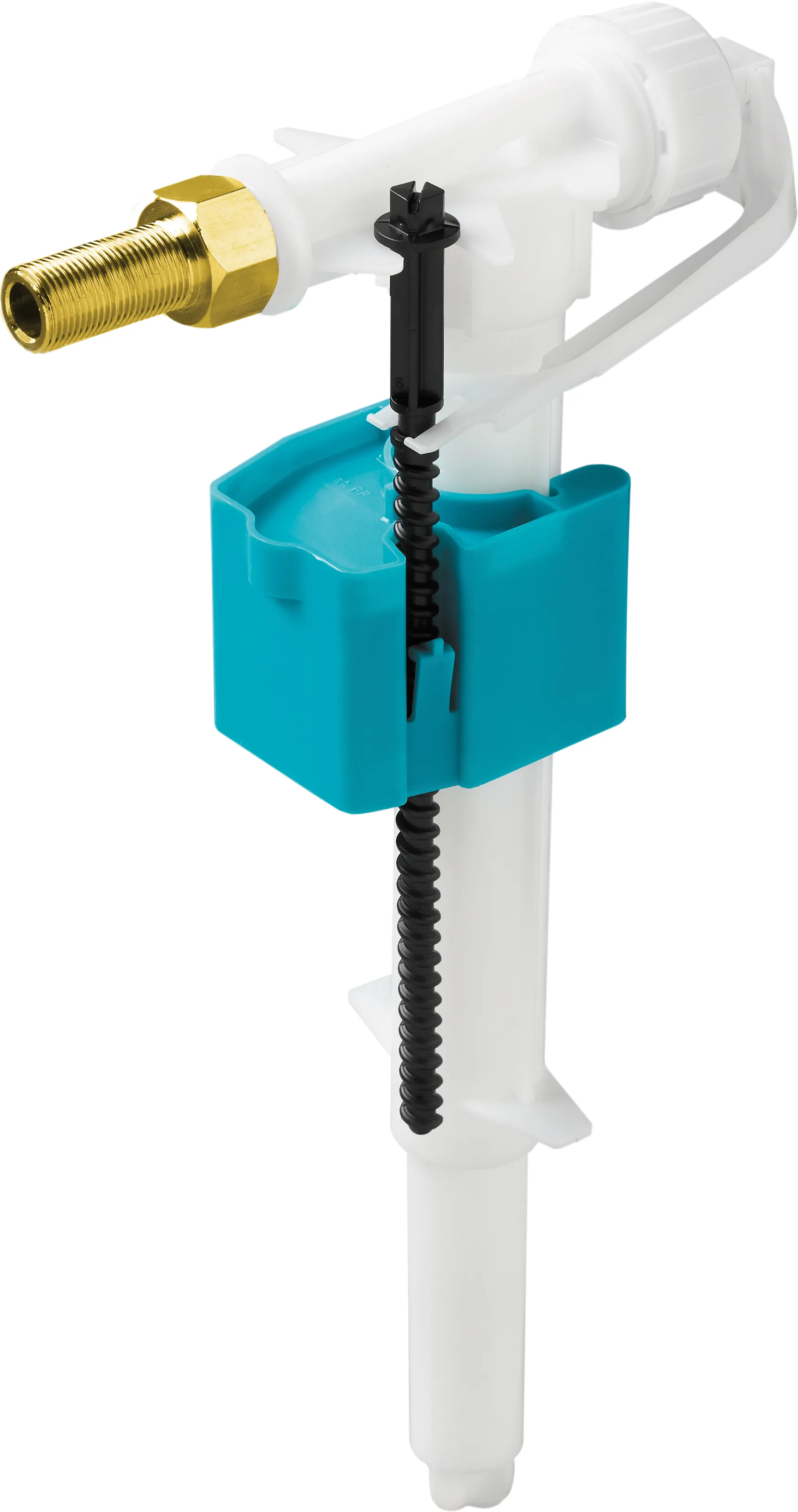

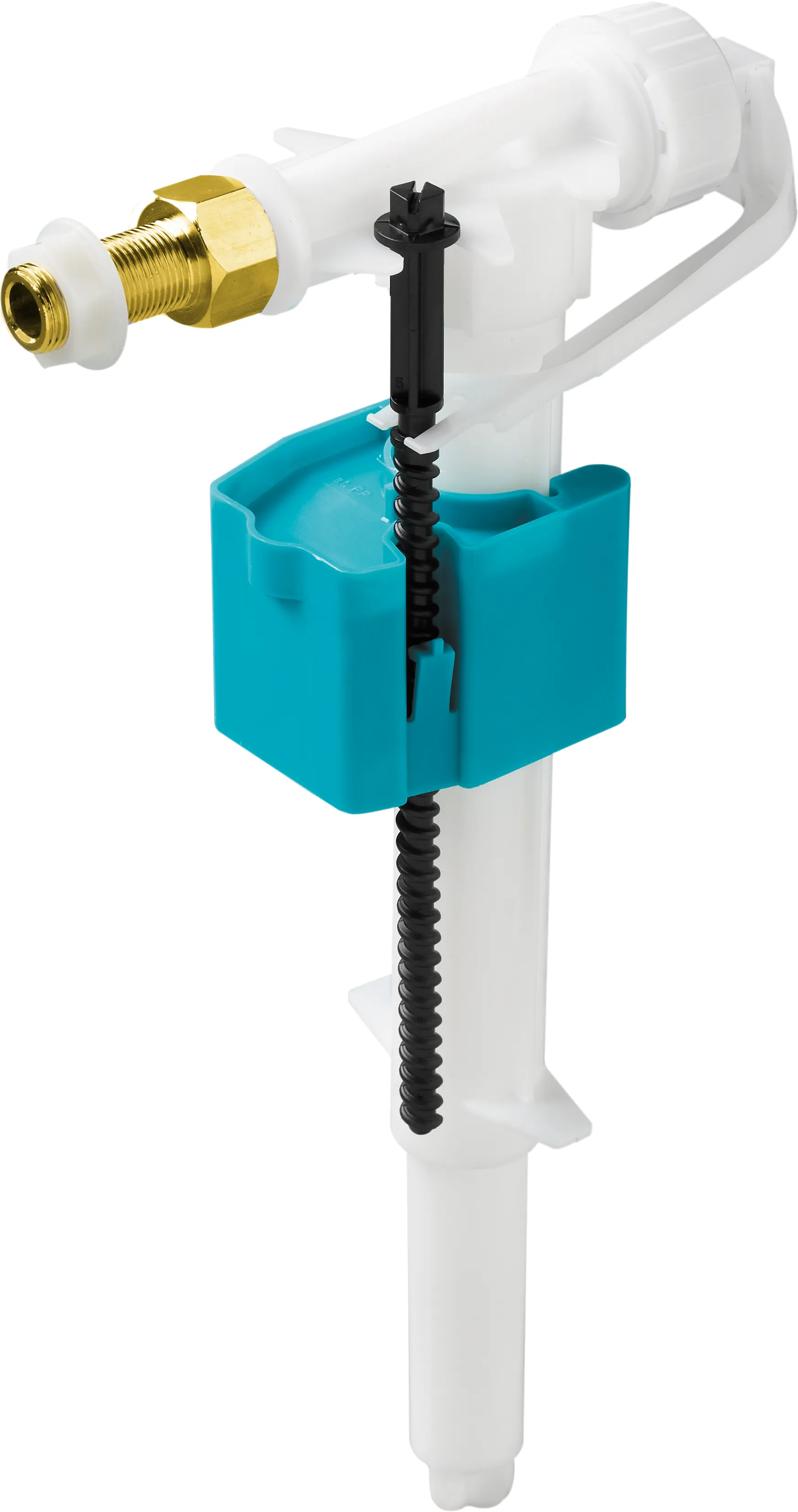

A universal hydraulic float valve that fills quickly and is quiet. Applicable in every common exposed cistern, duo block and WISA concealed cistern. Can be used in WISA XS and XT WC frames without a threaded piece, but also for all Sphinx / Novoboch / Warneton duo blocks. Has a G 3/8 thread, is very easy to place and adjust and has a KIWA quality mark. WISA gives a 10-year warranty on parts (with the exception of the rubber parts).

Product number: 8035432783
EAN: 8711778071605


  • Short filling time: 6 litres in 46 sec at 3 bar
  • Quiet filling: 13 dB (A), Classe 1
  • Telescopic tube
  • 3/8” side entry
  • Can be used in all cisterns with side entry
  • KIWA, LGA, DIN and DVGW approved
  • Supplied with accessories / fittings to your demands
  • Without threaded rod suitable for all Sphinx / Novoboch / Warneton close coupled cisterns
  • Without thread end suitable for all WISA XS and XT concealed systems
  • Without thread end and shortened black thread end suitable for all other WISA concealed systems

Connection: External thread
Depth: 175 mm
Eccentric connection: No
Height: 245 mm
KIWA certified: Yes
Length of threaded connection: 33 mm
Material of connection: Brass
Max. medium temperature (continuous): 30 °C
Max. pressure: 10 bar
Min. pre-pressure: 0.5 bar
Noise class: Group I, <= 20 dB(A)
Series: WISA
Size of threaded connection (inch): 3/8 inch
Sound class according to DIN-52 218: Group I, <= 20 dB(A)
Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
Warranty: 10 years
Width: 70 mm
