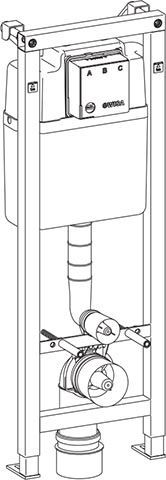

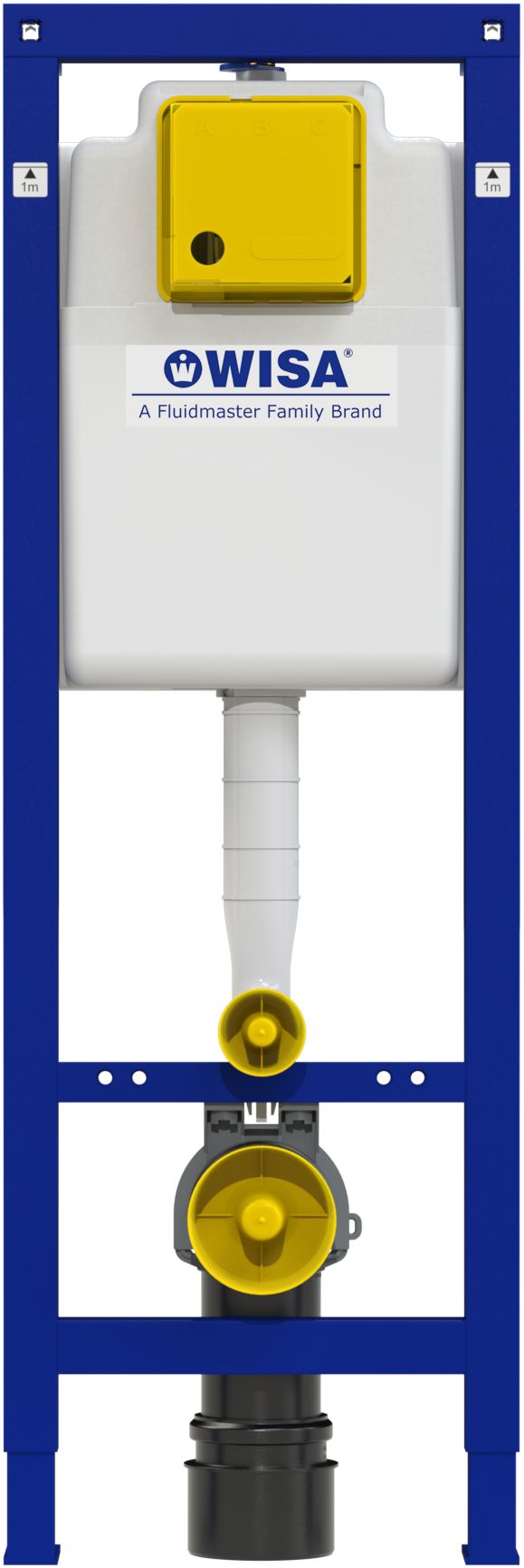

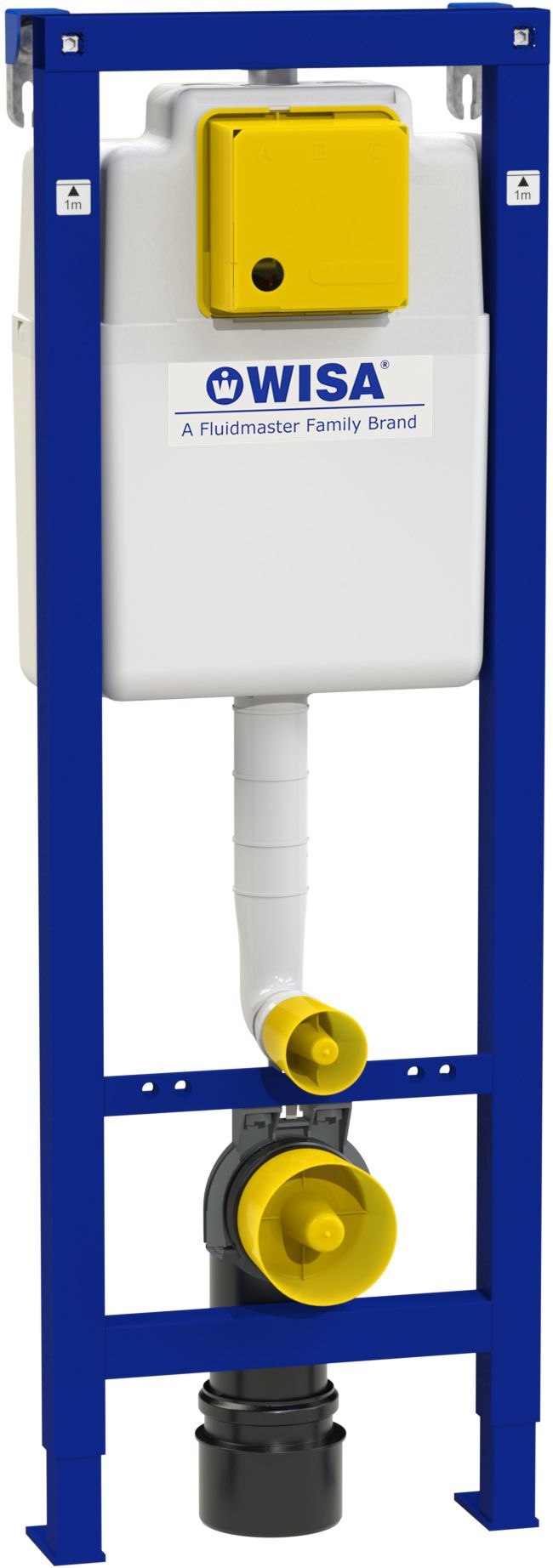

WISA XS WC frame 112 cm
With WISA XS and XT, we offer a new generation of concealed cisterns; developed and produced by and for professionals. During the development WISA was assisted by an extensive panel of installers. The practical experience of those people learned that next to installation ease and trustworthiness, also aesthetics and efficiency are important. This knowledge, combined with the yearlong experience that we have in flushing technique, was the base of the development of WISA XS and XT. With WISA XS and XT we offer a complete series of concealed cisterns, for both wet and dry processing.
Product number:
8050452764
EAN:
8711778183728
- Pre-installed WC cistern with support frame
- Blue powder coated frame
- Adjustable feet (20 cm)
- Dual flush 3/6 L or 6 L flush interruption depending on control panel
- Flush volume adjustable between 6 and 7.5 L
- Insulated against condensation
- Quiet hydraulic float valve
- Pre-installed stop valve
- Water connection 1/2”
- Pre-assembled wall fixation kit
- Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 or 100 mm
- Incl. insulation kit for pan to wall
- CE EN 14055 - CL1-6- NL I - VR I
| Adjustable depth: | Yes |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | Yes |
| Adjustable toilet height: | No |
| Adjustable width: | No |
| Battery power supply: | No |
| Centre distance of toilet attachment: | 18 cm and 23 cm |
| Depth: | 140 to 200 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 6 l |
| Frame suitable for wc with offset >60cm: | Yes |
| Frame suitable for wc with offset >60cm: | Yes |
| Height: | 1120 to 1320 mm |
| KIWA certified: | Yes |
| Load capacity >=400 kg according to EN 997: | Yes |
| Material: | Steel |
| Material flushing reservoir: | Plastic |
| Max. flushing water quantity: | 7.5 l |
| Min. flushing water quantity: | 3 l |
| Min. shelf height: | 1120 mm |
| Number of tap water connections: | 1 |
| Outer pipe diameter drainage: | 90 mm |
| Programmable with remote control: | No |
| Quality class flushing reservoir: | Polypropylene (PP) |
| Reservoir type: | WISA XS |
| Self-bearing construction: | Yes |
| Series: | XS |
| Size of tap water connection: | 1/2 inch |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Spacer under reservoir: | No |
| Suitable for drywall: | Yes |
| Suitable for electrical operation: | Yes |
| Suitable for flushing flow throttling: | Yes |
| Suitable for front operation: | Yes |
| Suitable for infrared operation: | Yes |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | Yes |
| Suitable for radar operation: | No |
| Suitable for sanitary installation wall system: | No |
| Suitable for shelf operation: | No |
| Suitable for shower toilet: | No |
| Suitable for solid wall: | No |
| Suitable for toilets with a reduced contact area: | Yes |
| Surface protection: | Coated |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Width: | 380 to 380 mm |
| With anti-condensation insulation: | Yes |
| With bracket suitable for floor mounting: | Yes |
| With bracket suitable for high wall mounting: | Yes |
| With bracket suitable for low wall mounting: | No |
| With building management system connection: | No |
| With contact sound insulation set: | Yes |
| With control panel: | No |
| With drainage bend: | Yes |
| With electrical connection: | No |
| With fan connection: | No |
| With flushing bend: | Yes |
| With front cladding: | No |
| With inlet and outlet fittings: | Yes |
| With mounting material for the element: | Yes |
| With mounting material for the toilet: | Yes |
| With stop valve: | Yes |
| Product number: | Description | Image |
|---|---|---|
| 8035432783 | Universal hydraulic float valve 3/8 |
|
| 8050801525 | Flush valve |
|
| 8050801522 | Flush valve (DFF) |
|
| 8050801527 | FLUSH VALVE, CISTERN 4/2 L |
|
| 1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
|
| 8050390037 | Bag of rubber gaskets for flush valve 28 x 65 x 3 (5 pc.) |
|
| 8050887175 | Tightening nut |
|
| 8050887113 | Cistern lid, cisterns XS, 380, 3800 |
|
| 8050887079 | Bridge for fill valve |
|
| 8050390034 | Clamp with control hooks, cisterns 3800/380, mechanical |
|
| 8050390032 | Clamp with control hooks, pneumatic |
|
| 8050390051 | SF clamp with control hocks |
|
| 8050390052 | DFF clamp with control hooks |
|
| 8050897009 | Electronische hefboom DF voor WISA XS/XT |
|
| 8050390108 | Set of fixation pins and control pins for XS, 380, 3800 FI plates |
|
| 8050390109 | Mounting and regulation pin set for DUO plates, cisterns 3800/380 |
|
| 8050887097 | Clamp for mounting the drain elbow |
|
| 8050887145 | Inspection opening protection, front |
|
| 8050887355 | Flush pipe with tongue |
|
| 8050390061 | Set of rubber seals for 90 mm drain pipe and drain elbow |
|
| 8050390090 | Discharge elbow Ø 90/90 mm |
|
| 8050390091 | Adapter reduction piece Ø 90/110 mm |
|
| 8050887372 | Adapter Ø 90/100 mm |
|
| 8050390080 | WC connection kit Ø 90 mm, L=230 mm |
|
| 8050390081 | Extra long WC connection kit Ø 90 mm, L=300 mm |
|
| 8050802329 | Flexible hose |
|
| 8050802325 | Flexible hose with G3/8 F - G1/2 Eurocone + ball valve |
|
| 8050802326 | FLEXIBLE CONNECTION TUBE, G 1/2 INTERIOR |
|
| 8050885470 | Flow reducer WISA XS/XT |
|
