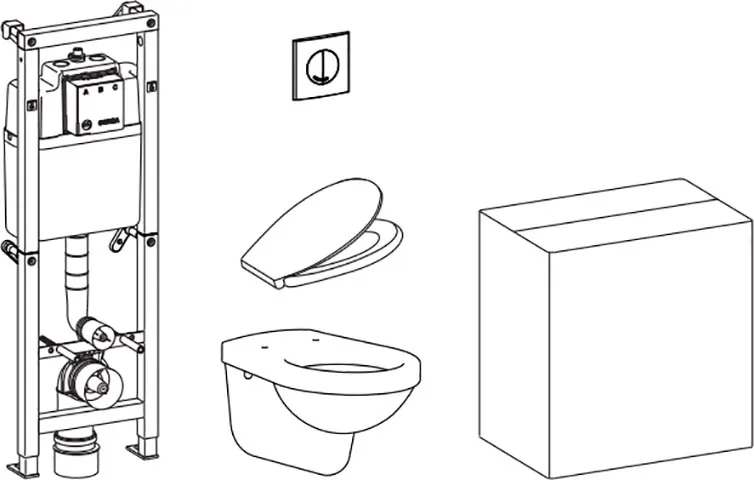

WISA all-in-one No 1

Product number: 8050435001

EAN: 8711778126770

WISA XS WC front

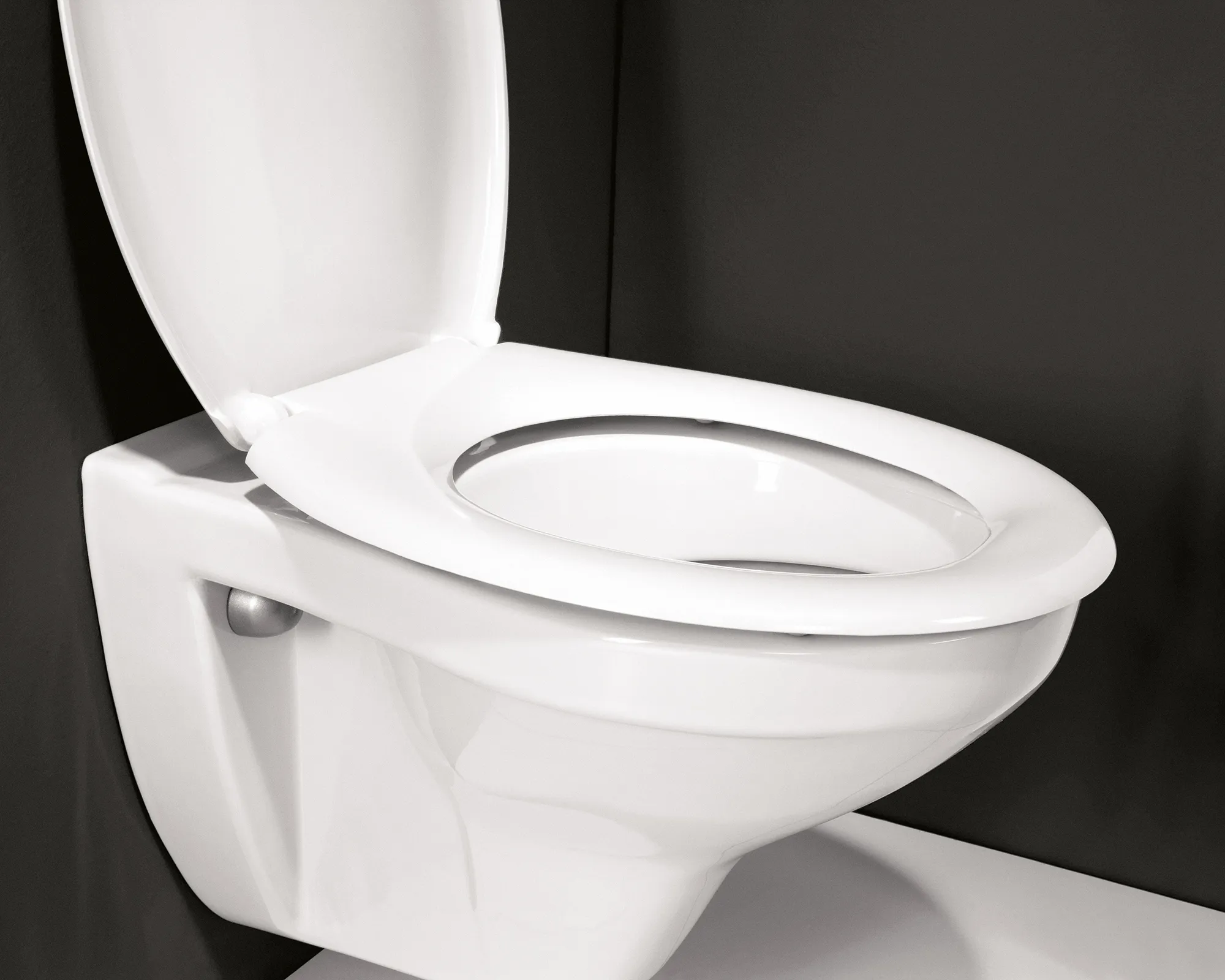

toilet pan WISA Sydney wall hung standard

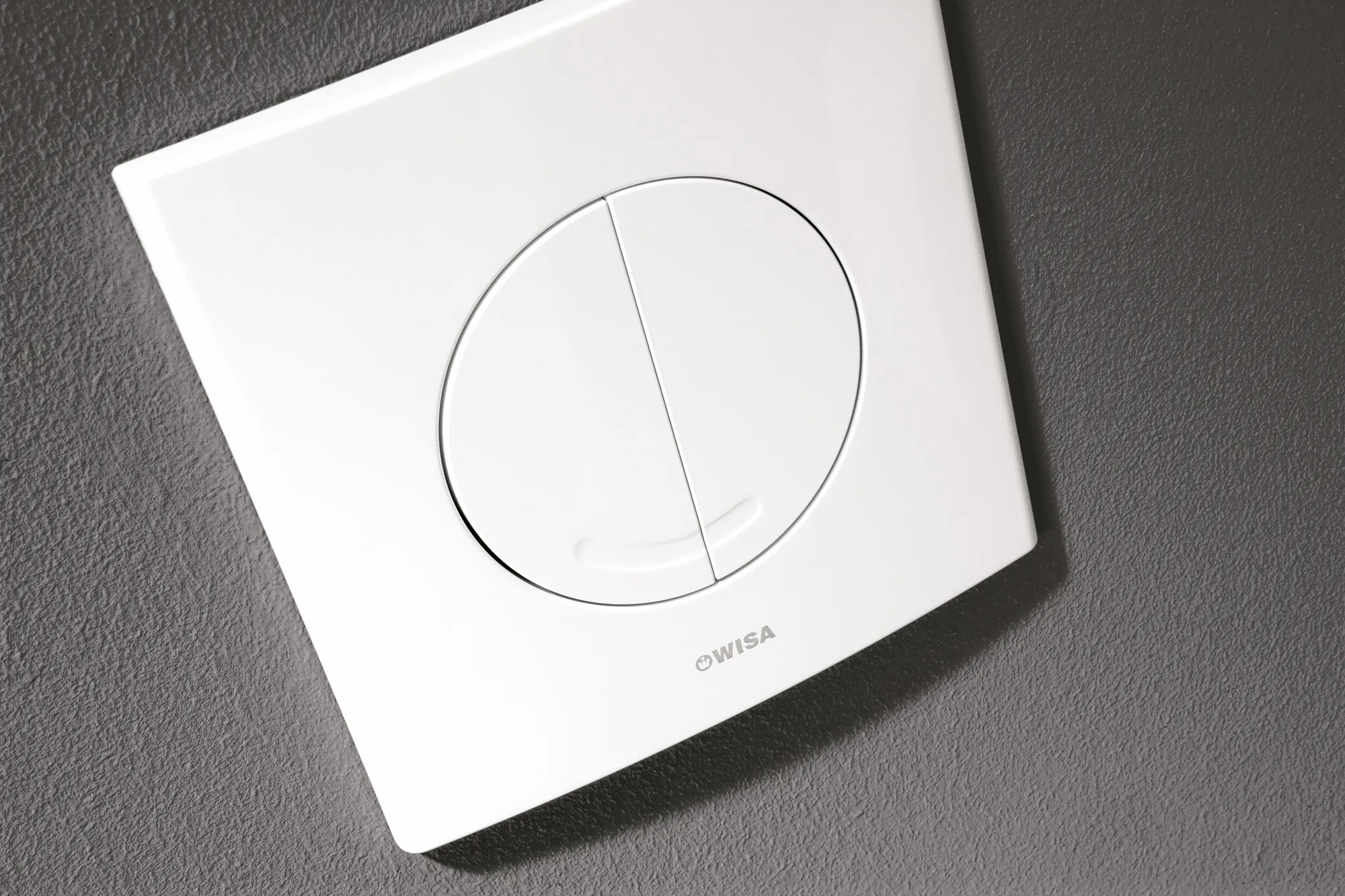

XS control panel Argos DF white
toilet seat Centaur white
insulation kit
package: 590 x 390 x 590 mm

Adjustable depth:	Yes
Adjustable flushing water quantity:	Yes
Adjustable height:	Yes
Adjustable toilet height:	No
Adjustable width:	No
Battery power supply:	No
Depth:	140 to 200 mm
Flushing:	Two quantities
Flushing water quantity:	3 to 6 l
Flush type:	Deep
Height:	1180 to 1380 mm
Load capacity >=400 kg according to EN 997:	Yes
Material:	Steel
Material flushing reservoir:	Plastic
Min. shelf height:	1180 mm
Number of tap water connections:	1
Outer pipe diameter drainage:	90 mm
Programmable with remote control:	No
Quality class flushing reservoir:	Polypropylene (PP)
Reservoir type:	WISA XS
Rimless:	No
Self-bearing construction:	Yes
Series:	XS
Size of tap water connection:	1/2 inch
Spacer under reservoir:	No
Suitable for drywall:	Yes
Suitable for electrical operation:	Yes
Suitable for flushing flow throttling:	Yes
Suitable for front operation:	Yes
Suitable for infrared operation:	Yes
Suitable for manual operation:	Yes
Suitable for pneumatic operation:	Yes
Suitable for radar operation:	No
Suitable for sanitary installation wall system:	No
Suitable for shelf operation:	No
Suitable for solid wall:	No
Surface protection:	Coated
Tap water connection:	External thread
Warranty:	10 years
Width:	380 to 380 mm
With anti-condensation insulation:	Yes
With bracket suitable for high wall mounting:	Yes
With bracket suitable for low wall mounting:	No
With building management system connection:	No
With contact sound insulation set:	Yes
With control panel:	Yes
With drainage bend:	Yes
With electrical connection:	No
With fan connection:	No
With inlet and outlet fittings:	Yes
With mounting material for the element:	Yes
With stop valve:	Yes
With thigh supports/fixed toilet seat:	No

Instructions 8050435001
