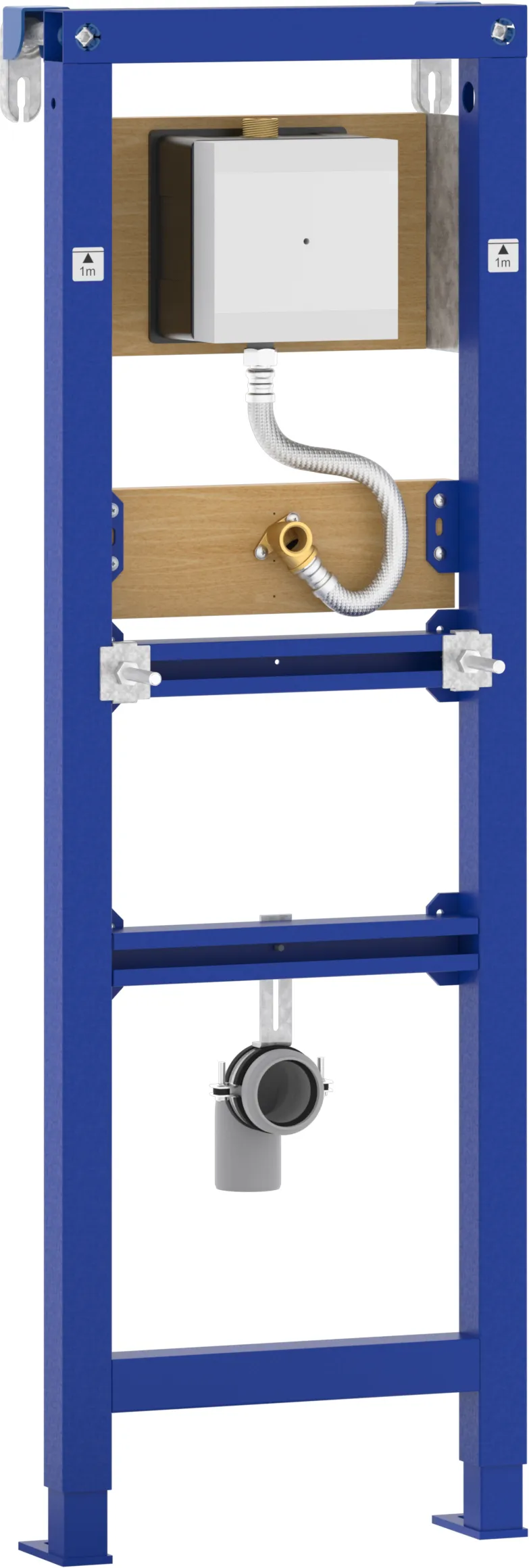

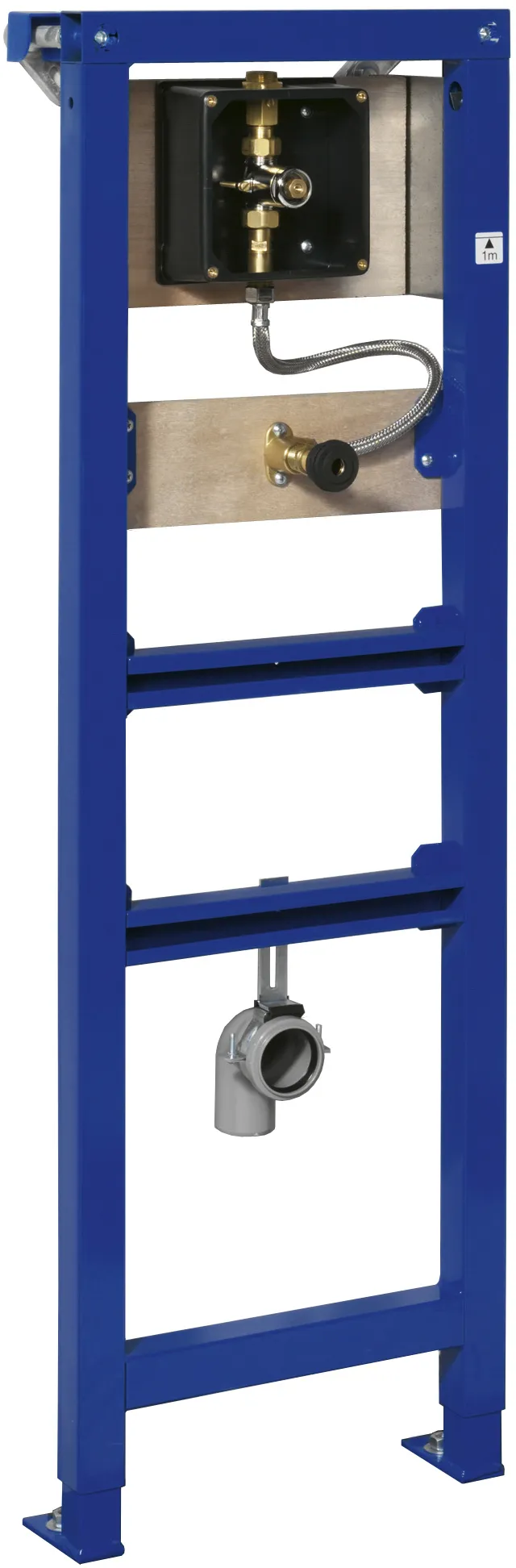

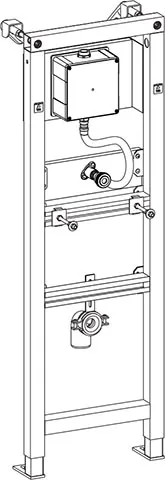

mecanismo de urinario WISA XS para panel Square
Número de producto:
8050452758
EAN:
8711778137875
- universal para los tipos más comunes de urinarios
- bastidor autoportante lacado en azul
- pies de altura regulable (200 mm)
- incluye juego de fijación a la pared
- incluye codo de desagüe DN 50
- caja de encastrado preensamblada, con válvula de bola y tubería a toma de agua
- mecanismo de descarga a presión
- toma de agua superior G 1/2
- guía de encastrado de styropor
- presión de descarga: 0,12-0,4 MPa
- volumen de descarga: constante 3 ± 1 l
| Adjustable depth: | Yes |
|---|---|
| Adjustable height: | Yes |
| Adjustable throughflow capacity: | No |
| Adjustable urinal height: | Yes |
| Adjustable width: | No |
| Alimentación por batería: | No |
| Altura: | 1180 to 1380 mm |
| Con material de montaje para el elemento: | Yes |
| Depth: | 135 to 200 mm |
| Drenaje del diámetro exterior de la tubería: | 50 mm |
| Flushing time usage frequency adjustment: | No |
| Garantía: | 10 años |
| KIWA certified: | Yes |
| Material: | Acero |
| Max. pre-pressure: | 4 bar |
| Min. pre-pressure: | 1.2 bar |
| Number of attachment points according to element: | 4 |
| Pre-assembled element: | Yes |
| Pre-assembled flushing unit: | Yes |
| Pre-pressure: | 1.2 to 4 bar |
| Programmable with remote control: | No |
| Self-bearing construction: | Yes |
| Size of tap water connection: | 1/2 pulgada |
| Suitable for drywall: | Yes |
| Suitable for infrared operation: | No |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | No |
| Suitable for radar operation: | No |
| Suitable for sanitary installation wall system: | No |
| Suitable for solid wall: | No |
| Tap water connection: | Rosca interna |
| Tratamiento de superficie: | Con revestimiento |
| Width: | 380 to 380 mm |
| With building management system connection: | No |
| With drainage bend: | Yes |
| With inlet fittings: | Yes |
| With pre-flushing: | No |
| With siphon: | No |
| With spacer tube for radar antenna: | No |
| With urinal attachment materials: | Yes |
| Número de producto: | Descripción | Imagen |
|---|---|---|
| 8050421121 | Panel de control XS Square para Urinario |
|
